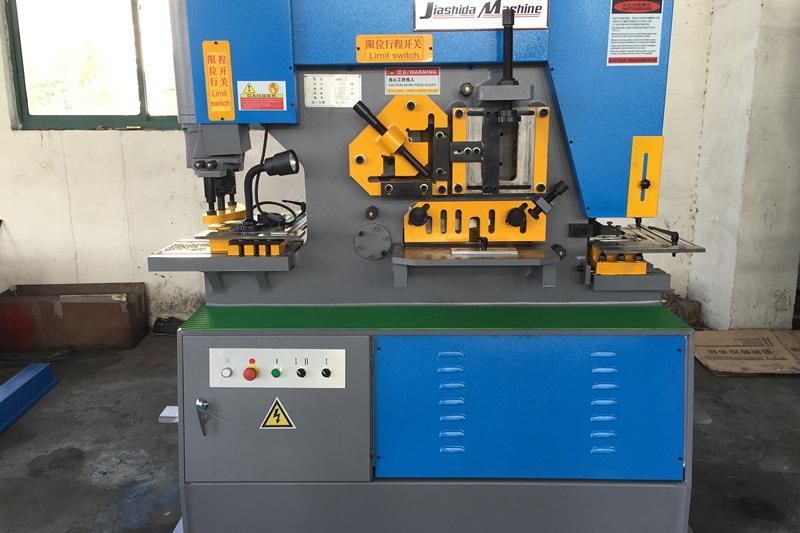

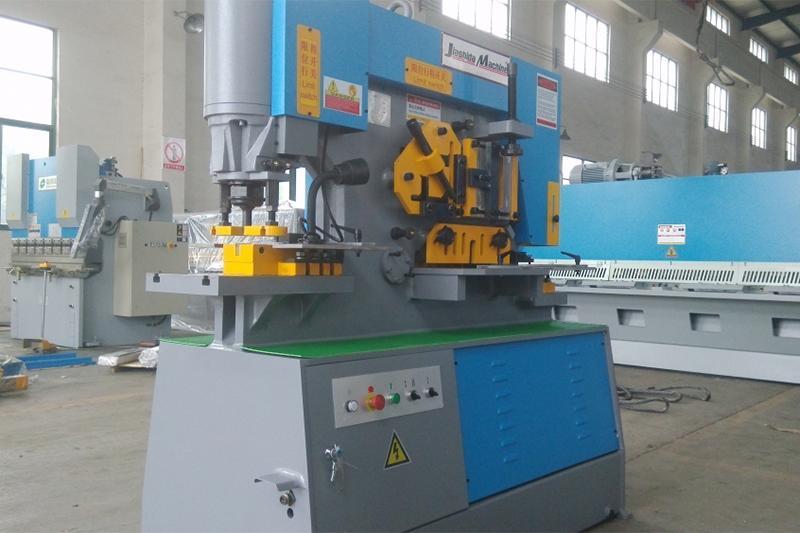

Hydraulic Ironworkers (From 60 to 250 ton)

Application
The hydraulic Ironworker uses a hydraulic transmission, and can shear and pierce blanking of sheet materials, square steel, round steel, angled steel, channel steel and I-beams. And it's equipped with stop gauge during shearing.

Parameters
Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50
Punching Holes Diameter×thickness mm 25x16 30x20 35x25 38x26 40x35 40x40
Max diameter mm 25 30 35 38 40 40
Stroke mm 80 80 80 80 80 80
Work stroke mm ×20 ×25 ×25 ×30 ×35 ×40
Throat depth mm 300 355 400 600 600 600
Steel bar cutting Round steel bar mm 45 50 60 65 70 80
Square steel bar mm 4040 50×50 50×50 55×55 60×60 65×65
Angle cutting Angle cutting mm 125×125×12 140×140×12 160×160×14 180×180×16 200×200×18 200×200×20
Angle
50×50×5 50×50×5 60×60×6 60×60×6 100×100×10 120×120×10
Edged surface mm 5.5 6.5 9 11.5 12 12
Notching Thickness mm 126 160 210 280 300 320
Width mm 53 60 75 86 89 92
U-shape and I-beam cutting mm 125×125×12 140×140×12 160×160×14 180×180×16 160×160×14 180×180×16
T-section cutting mm 60×60×8 70×70×10 80×80×10 80×80×10 80×80×10 80×80×10
I-beam cutting mm 126×74×5 160×86×6 200×102×9 280×124×10.5 300×126×11 320×130×10
V-notching die Length mm 600 600 600 600 600 600
V-bending die Width mm 10 15 20 26 33 40
Pressure kn 600 900 1200 1600 2000 2500
Motor Power kw 4 5.5 7.5 11 15 18
Weight kg 1900 2500 5200 6800 11000 14500
Machine outline size(L×W×H) mm 1640×730×1770 1860×800×1990 2355×960×2090 2680×1040×2300 2970×1240×2350 3000×1440×2450

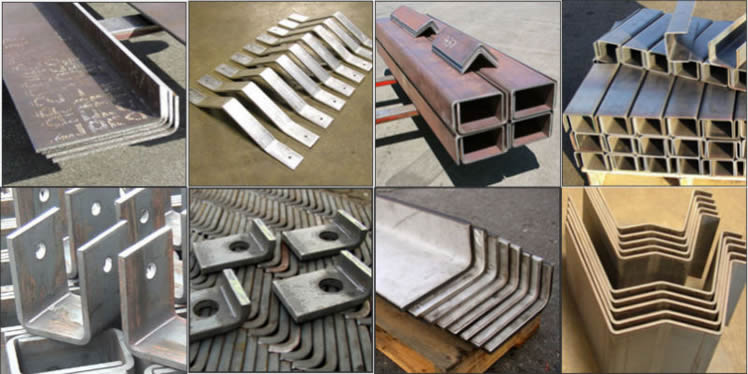

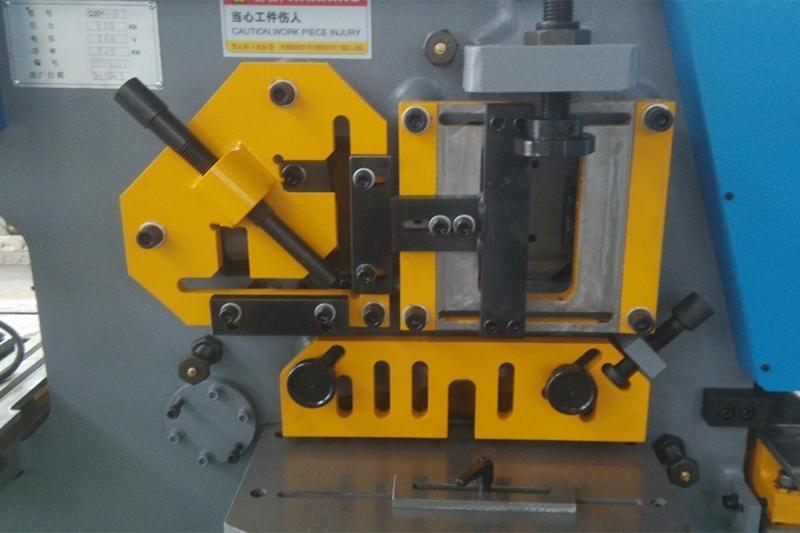

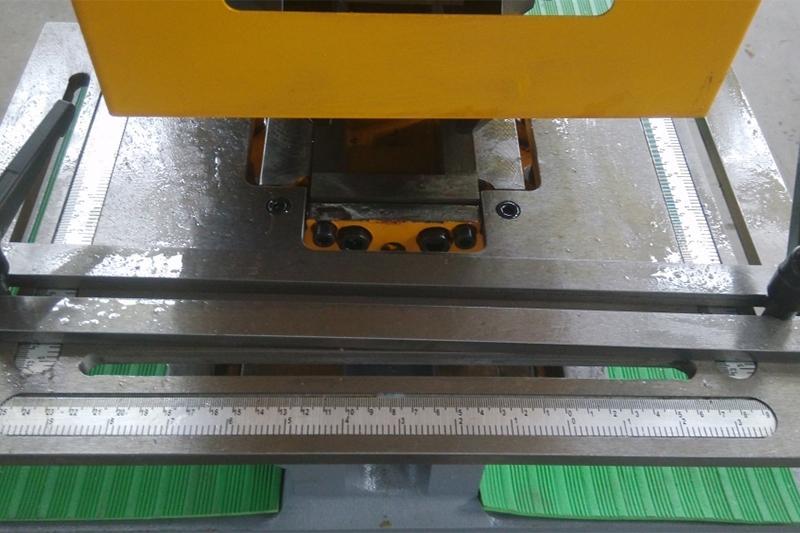

Samples
Product details

Jiashida is a sheet metal fabrication equipment manufacturer and supplier, offering all kinds of sheet metal metalwork machinery like hydraulic shear, press brake, punch press, plate roll bender and sheet metal shears, metal benders. We have well trained and experienced team and fully equipped machining equipment to guarantee that we offer good quality metalworking machines.
