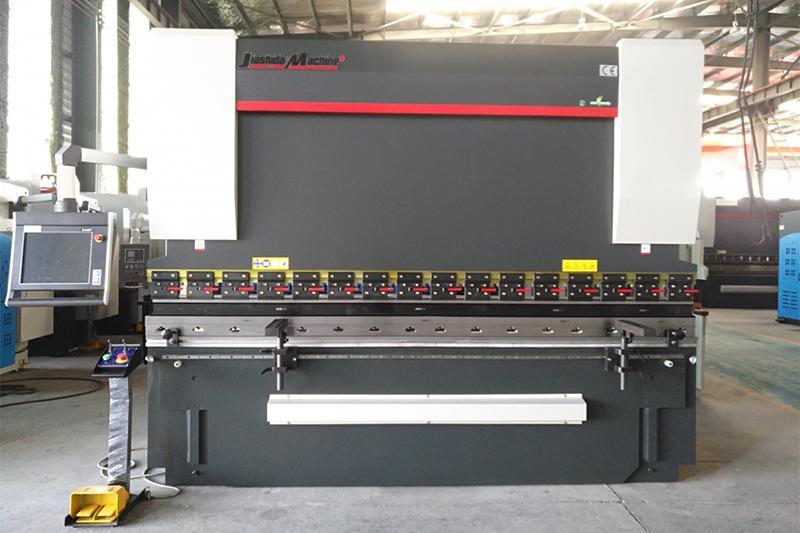

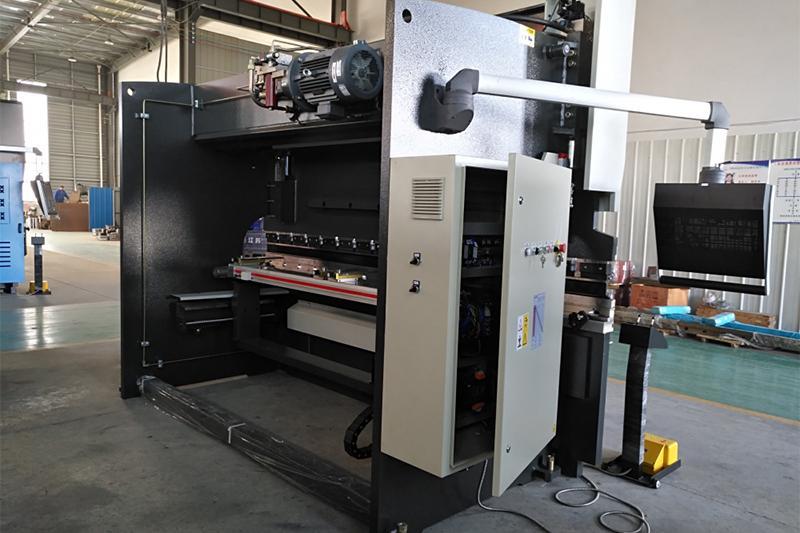

The DA66T electro hydraulic bending press brake is primarily used for the bending and processing of stainless steel, iron, copper and aluminum, and features a high production efficiency and bending accuracy. The DA66T electro hydraulic bending press brake uses upper and lower molds in different shapes, so that metal can be bent into various shapes. Through the use of a single sliding stroke, the material is quickly bent into shape, and the workpieces with complicated shapes can be made by multiple bending. The DA66T electro hydraulic bending press brake can be widely used in the aviation industry, light industry, metallurgical industry, chemical industry, architecture industry, shipbuilding industry, auto industry, power industry, electric appliance industry and decoration industry.
|odel||Bending Pressure (Kn)||Bending Length (mm)||Column Distance (mm)||Throat Depth (mm||Slider Stroke (mm)||Max. Opening Height (mm)||Yl,Y2-axis Down Speed (mm / sec)||Yl,Y2-axis Back Stroke Speed (mm / sec)||Y1,Y2- axis Precision (mm)||X-axis Max Distance (mm)||Workpiece Linear Degree (mm/m)||X&R Axes Accuracy (mm)||Sliding Front Supporting Stopper Arms (PCS)||Back Stopper (PCS)||Main Motor (Kw)||L*W*H(mm)||Weight (T)|

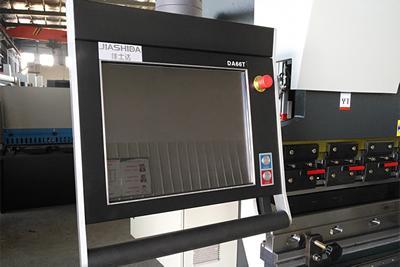

DA66T CNC system
1. The CNC system adopts an embedded, real time WINDOWS service platform, which ensures the maximum stability of the operation equipment and supports immediate shut down.
2. Using touch style CNC equipment, the program, operation and control are all efficient.
3. With 2D product programming, automatic calculating bending process and collision detection is carried out.
4. The 3D all range and multi-station mold displays the bending feasibility of the DA66T electro hydraulic bending press brake.
5. The OEM panel can be customized according to customer requirements.

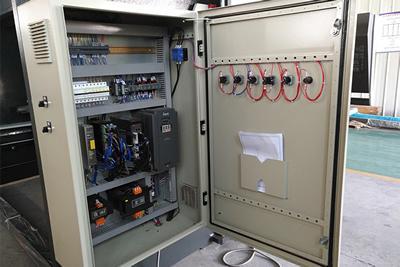

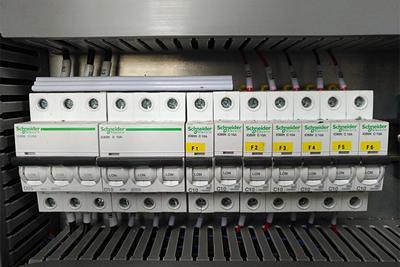

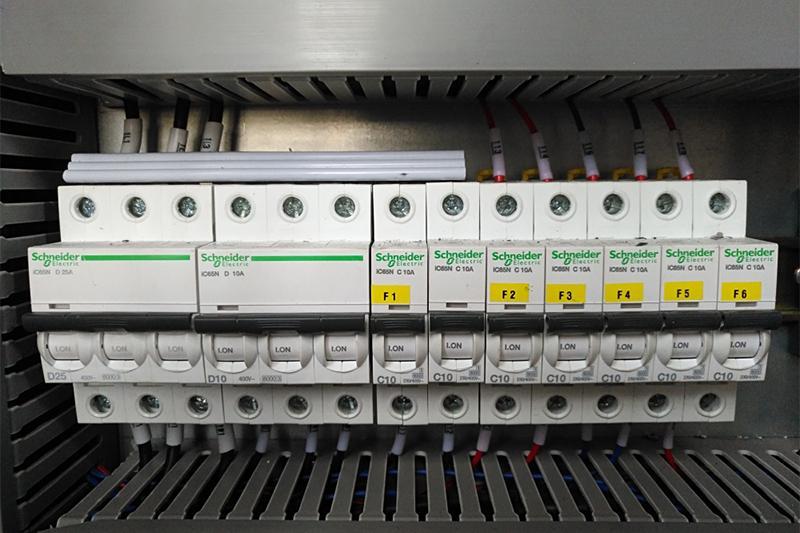

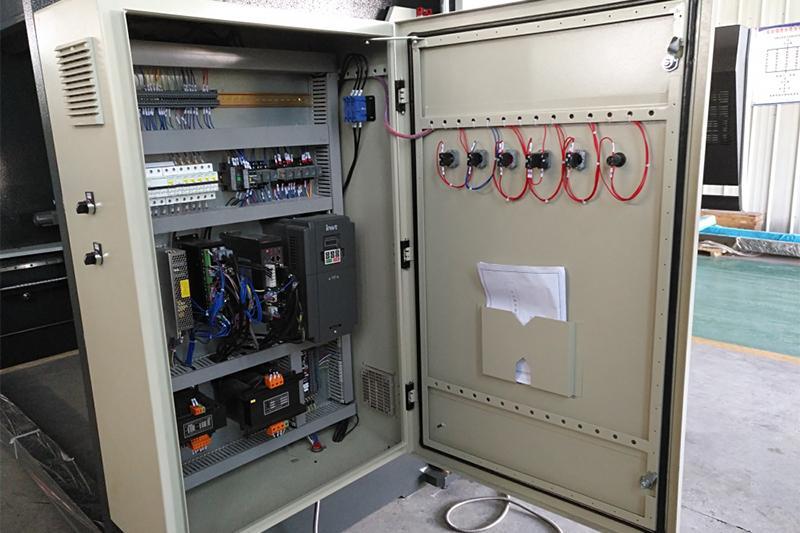

The electrical system primarily uses Schneider equipment with a dust protection, high quality electrical cabinet in order to ensure the high quality of the entire electrical system.
Germany Rexroth or America First hydraulic system;
By using the Siemens electric machine, the service life of the electric bending press brake is increased, as well as decreases the noise levels of operation.

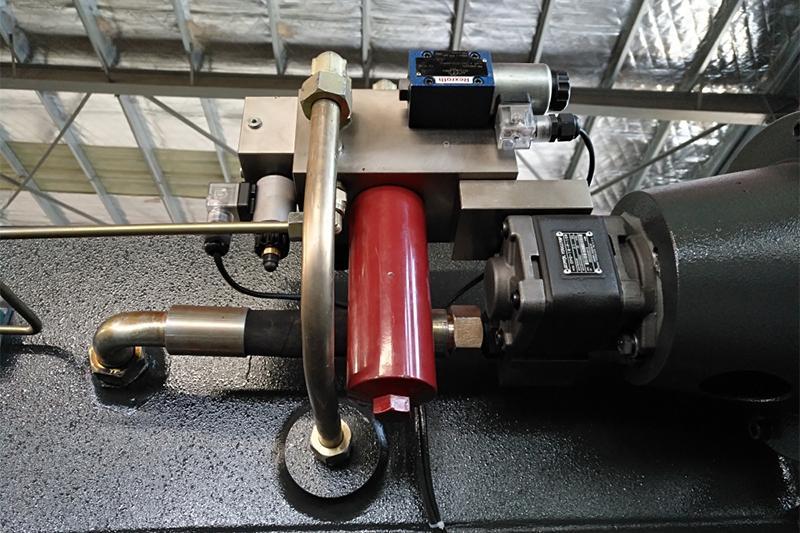

America SUNNY internal gear pump with excellent oil absorption features and easy maintenance.

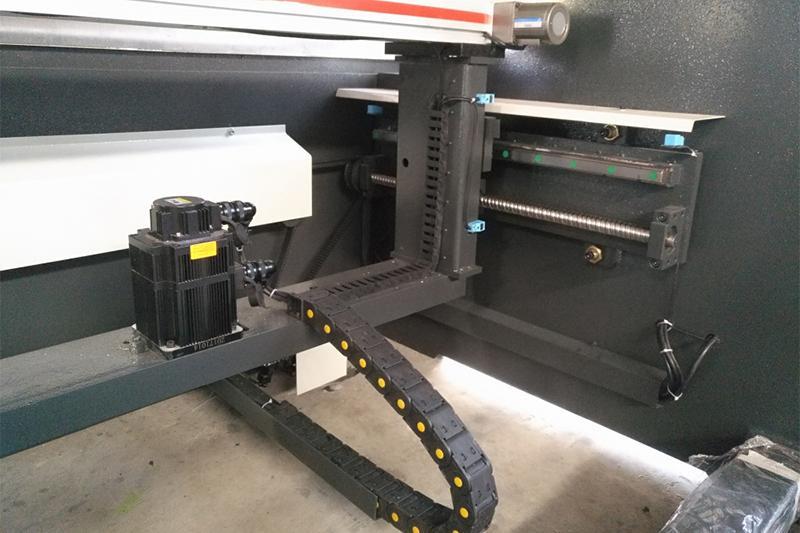

Servo motor with high-performance controlling the X axis and R axis.

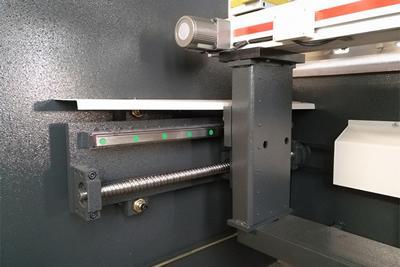

Heavy load linear guide rail guiding, Large lead ball screws transmission, High accuracy, fast speed and good stability.

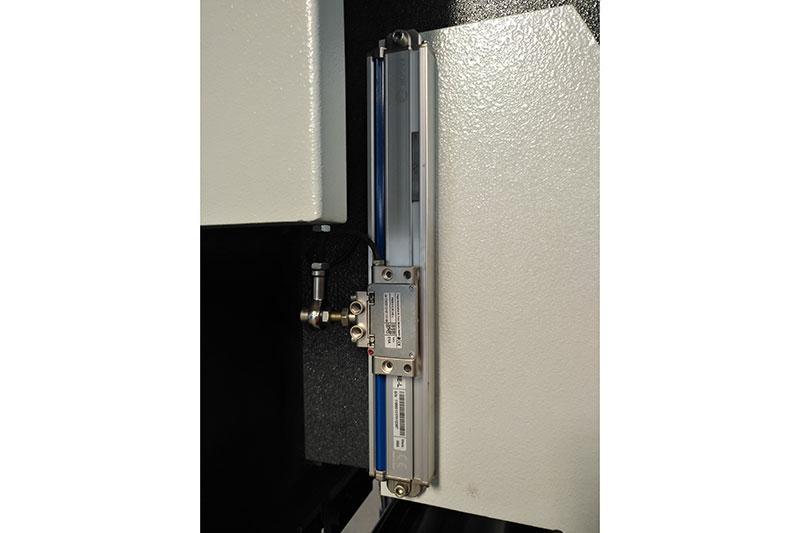

The Spanish FAGOR raster ruler controls the Y1 axis and Y2 axis, while the control system receives the side position signal through the FAGOR raster ruler, then changes the opening size of the synchronous valve in order to adjust the cylinder oil capacity. By doing so, the Y1 and Y2 axis are in the same frequency and remain in a parallel status.

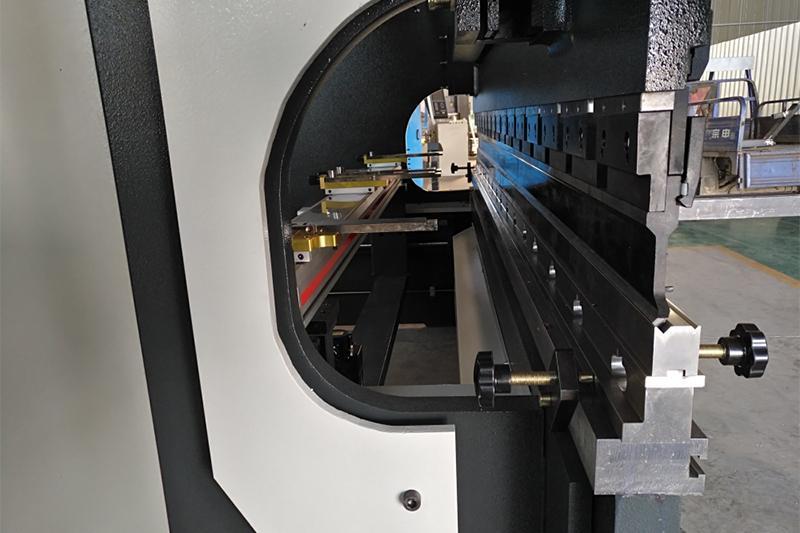

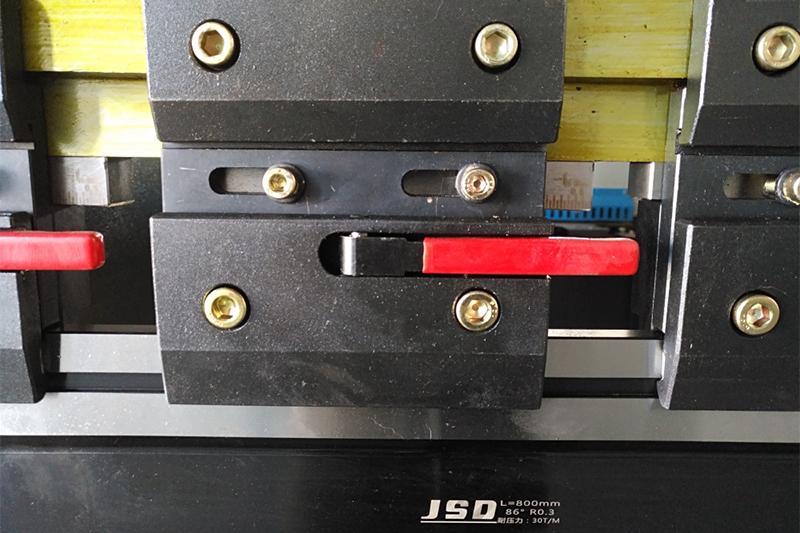

Quickly clamping device
European style mold clamp connector
With a fine-tune wedge block, users can adjust the effective usage height of the clamp to ensure the flatness remains even among the clamps.
A set of standard molds makes mold change easy.
integrated quenching technique, High hardness and grinding resistance
The mold can be designed according to client requirements

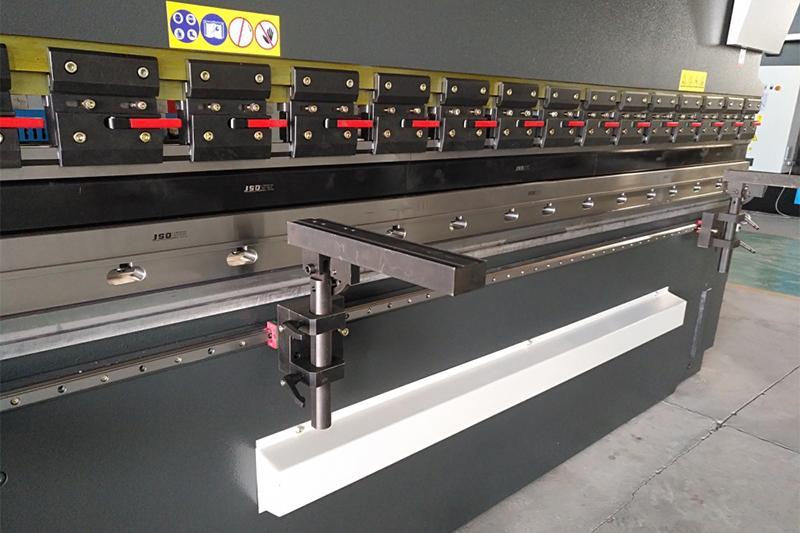

The front supporter features a simple structure. Not only is it adjustable in an up and down manner, but it can also operate conveniently from left to right along the work bench.

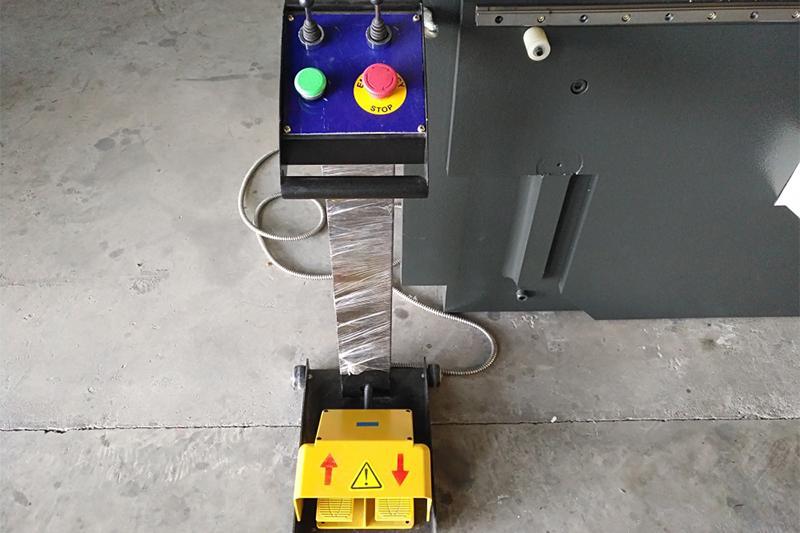

The KACON foot switch, manual adjustment, and emergency stop switch button all work together to ensure operation safety.
By moving the two small handles, the back gauge fingers can be moved left or right according to the need of the sheet position.
