Application of the QC11K sheet metal hydraulic guillotine shear with E200PS controller

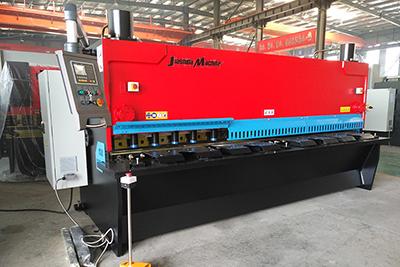

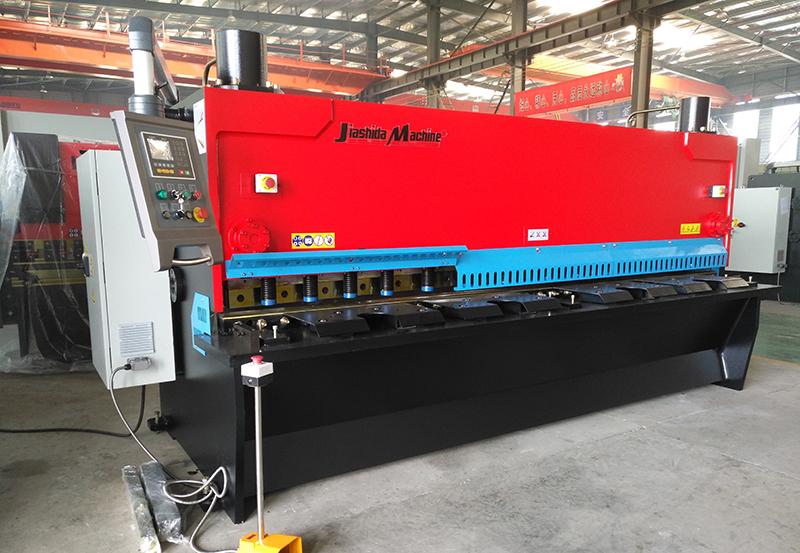

The QC11K sheet metal hydraulic guillotine shear with E200PS controller is specially engineered for the high precision shearing process in metal fabrication for stainless steel iron, copper, and aluminum.

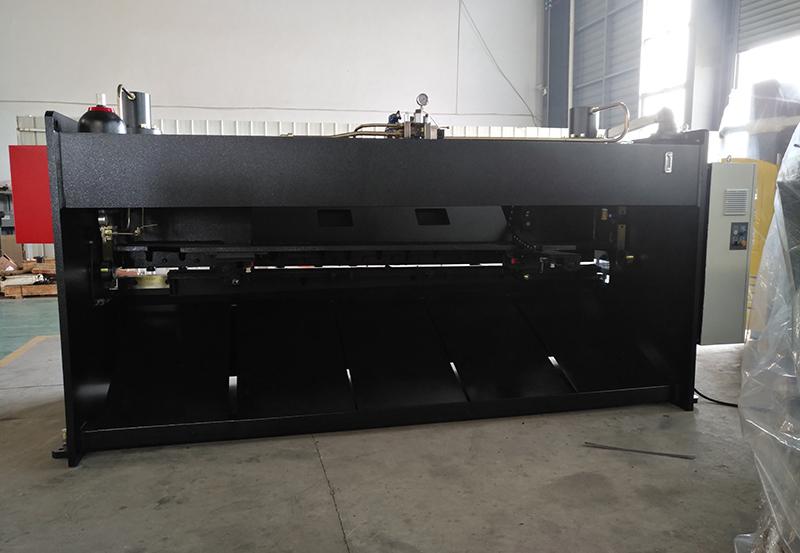

The shear features a gate structure and is composed of a machine rack, knife rest, blade gap adjustment system, material pressing system, front gauge, back gauge, hydraulic system and Siemens electrical system. It was developed by our highly skilled engineers for the shearing process in metal fabrication used in the following applications: aviation industry, light industry, metallurgical industry, chemical industry, architecture industry, shipbuilding industry, auto industry, power industry, electric appliance industry and decoration industry. This type of equipment is suitable for use with stainless steel, iron, copper, and aluminum workpieces.Parameters of the QC11K sheet metal hydraulic guillotine shear with E200PS controller
|Type||Max Thickness (mm)||Cutting
|<450N / mm2||<700N /mm2||Travel (mm)||Speed

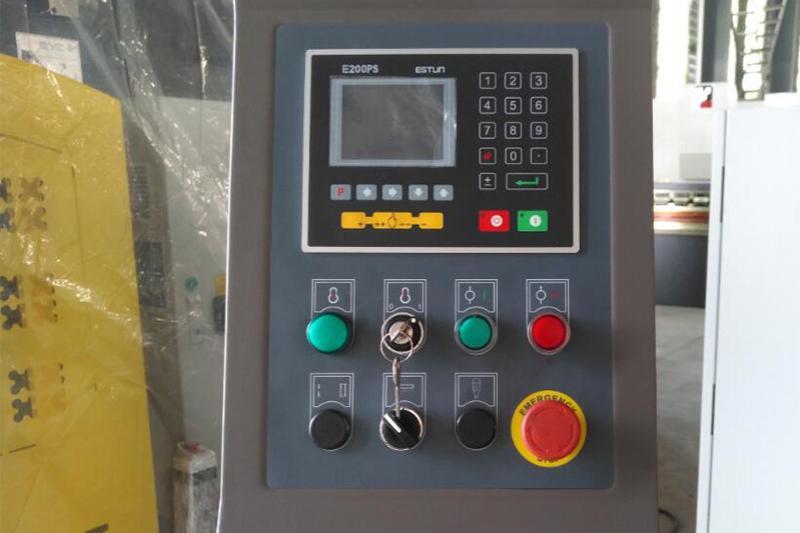

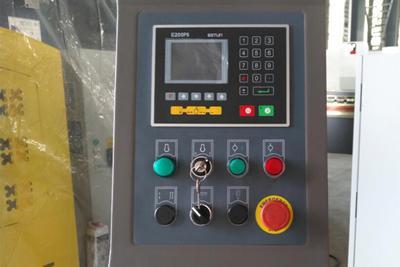

Estun E200PS CNC system
1. Programing quickly and conveniently;
2. The QC11K sheet metal hydraulic guillotine shear with E200PS controller adopts CAN bus technology, the control accuracy is high and the resolution can reach about 0.001;
3. The machine has the function of self-diagnosis and real time alarm, thus making the machine securely;
4. The QC11K sheet metal hydraulic guillotine shear with E200PS controller has the function of one key backup and recovery;
5. Pass the CE identification;
With the sliding workbench and front supporter of the QC11K sheet metal hydraulic guillotine shear with E200PS controller, feeding the material conveniently and ensuring the product will not be scratched during operation.

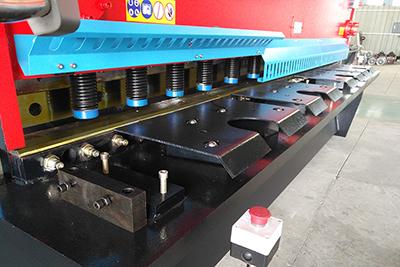

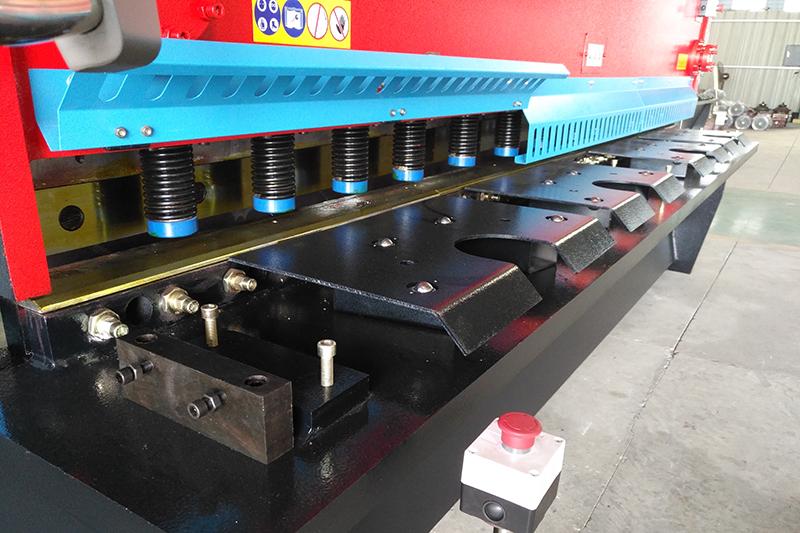

The material pressing system of the QC11K sheet metal hydraulic guillotine shear with E200PS controller adopts a parallel compaction cylinder and also has the rubber blanket. And the compaction power can adjust flexibly according to the material and length. It will not scratch the material surface.
Machine is with Germany EMB oil tube connector, well sealed.
Germany Busak Shamban Sealing Rings, high wear resistance, easy to install.

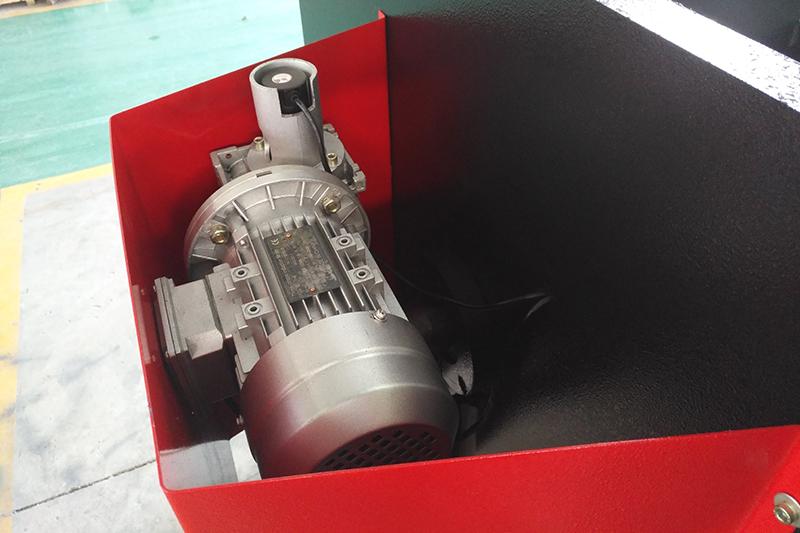

Side Motor for cutting angle controlling, and reflects on the E21S control panel.

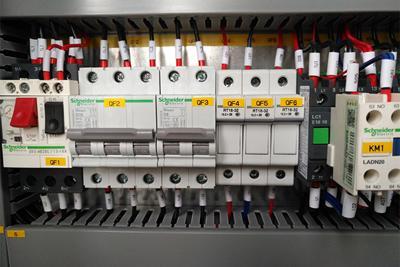

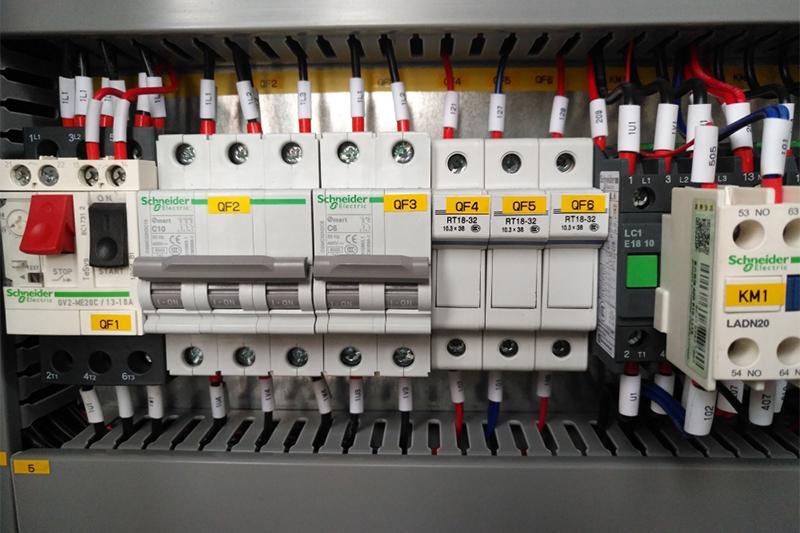

Schneider electrical components increasing the working lifetime of the sheet metal guillotine hydraulic shear adopts and effectively decreasing the working noise of the machine;
To the QC11Y sheet metal guillotine shearing machine with E21S controller, with the DELTA frequency changer can ensure the location device does not swing horizontally and increase the location accuracy;

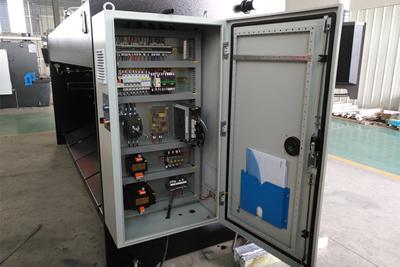

When the electric cabinet door is open, the machine automatically shuts off as a safety feature.

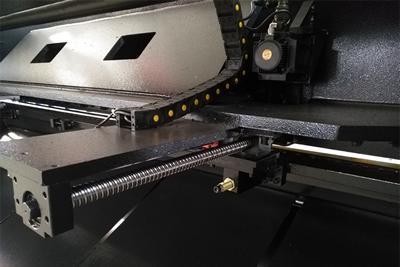

Taiwan HIWIN/TBI precise ball screws & linear guide

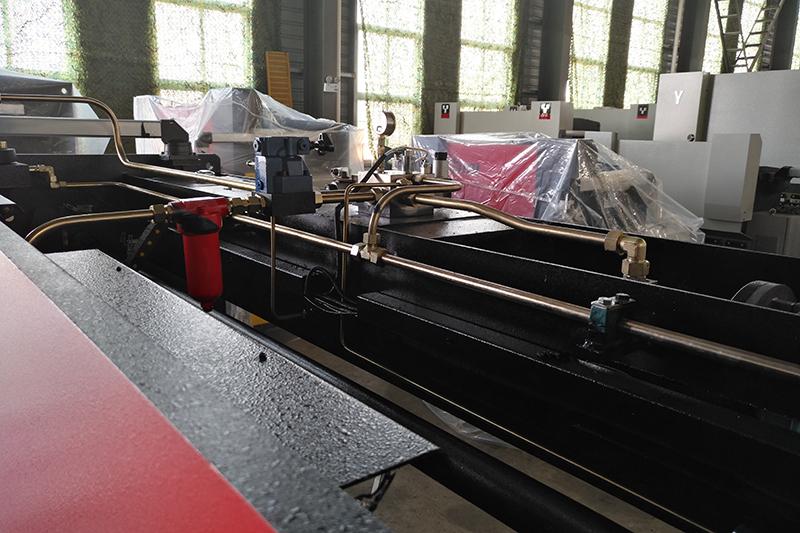

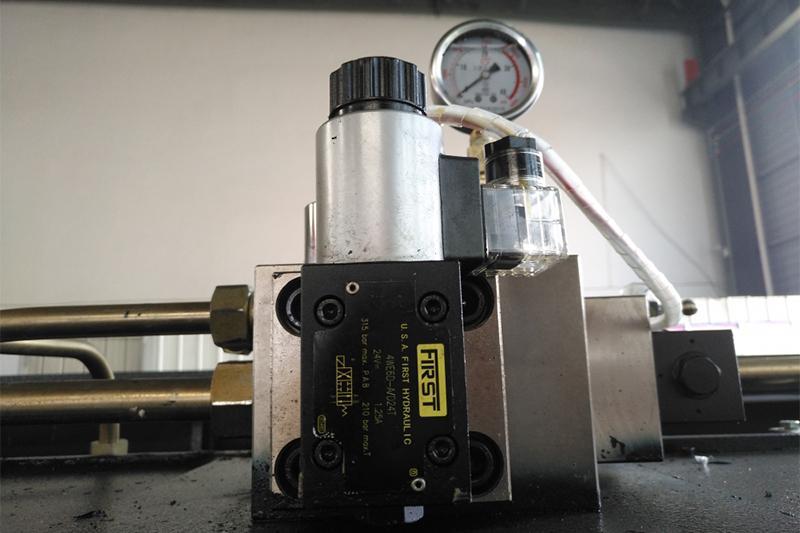

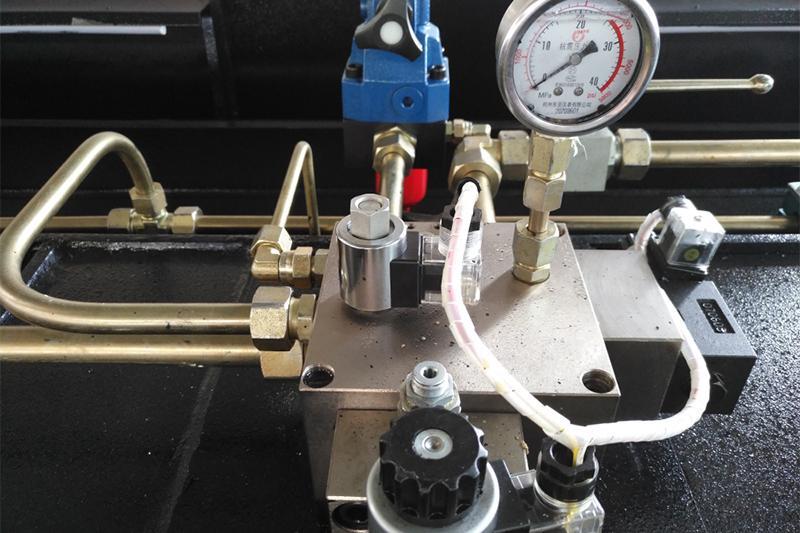

The hydraulic control system of the sheet metal guillotine hydraulic shear adopts a hydraulic valve supplied by Rexroth or First to control the up and down movement of the shear's cutting board.

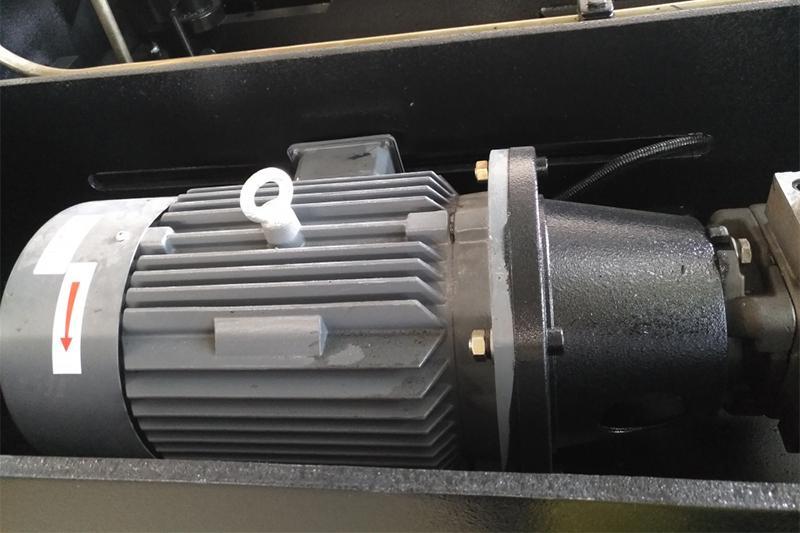

Siemens motor increases the working lifetime of the sheet metal guillotine hydraulic shear adopts and effectively decreasing the working noise of the machine.

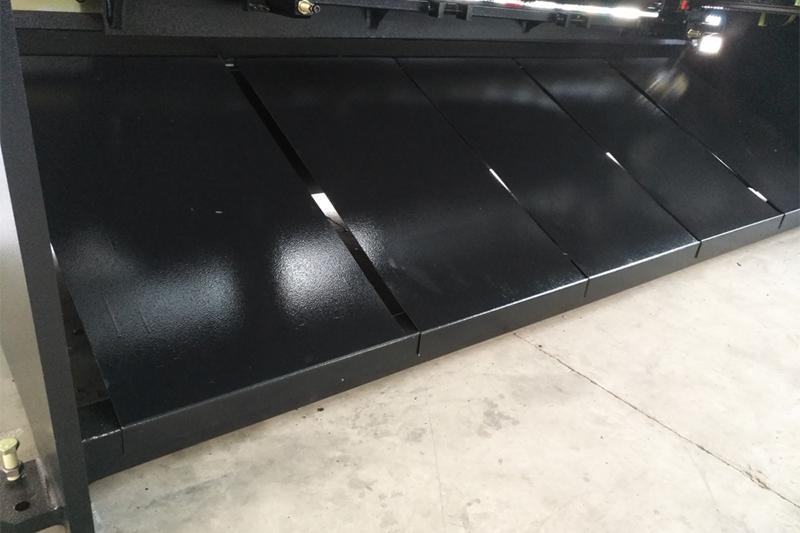

The setting of sliding blanking plate avoiding the danger when worker pick material.

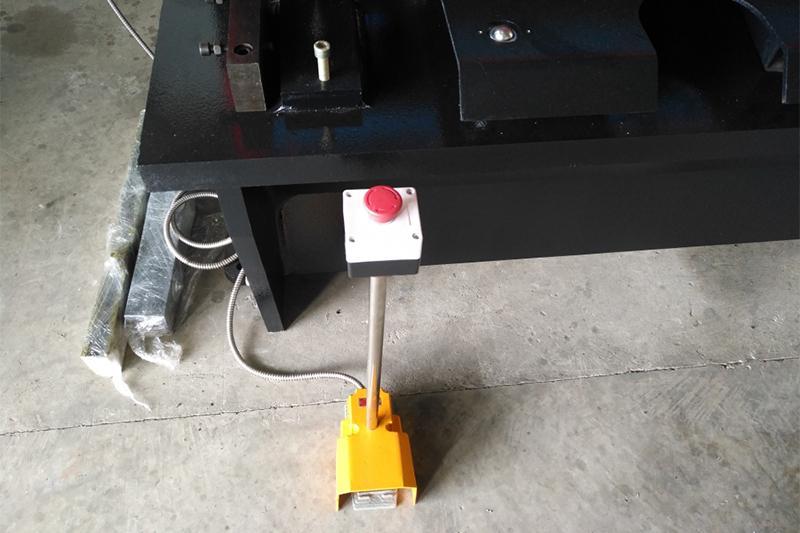

There is emergency stop device on the foot switch to ensure worker safety.
